Digital Doorlock ProductNo.1 firm.Good firm.Happy working staffs.

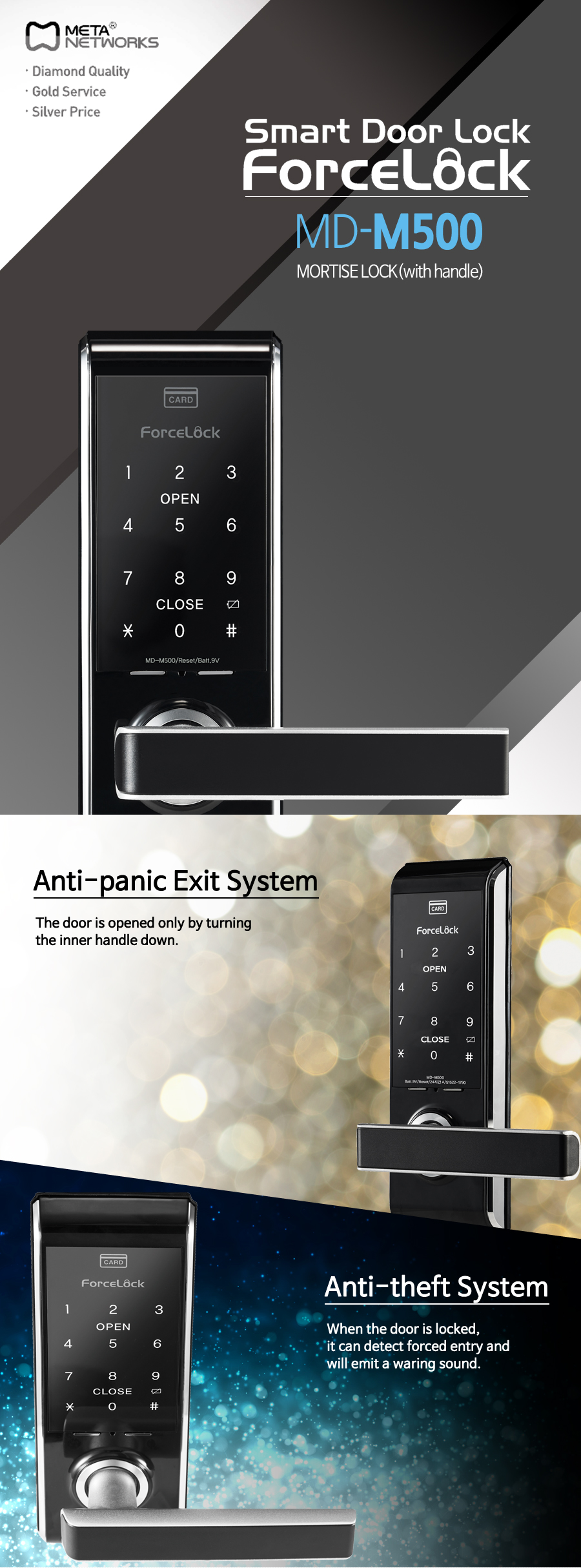

MD-M500
RF Moudle



Model No MD-M500
Color Silver, Gold, Wine
Door Thickness 35 ~ 60mm
Operation Method Password 4~12digits (Up to 4 passwords)
RF Key Tag (Up to 30 key tags)
RF Module (optional)
Operation Temperature -20℃~50℃
Fire Detection Temperature 60°C ± 10°C
Power DC 6V (LR6 1.5V AA 4 Alkaline battery)
Emergency Power DC 9V Alkaline battery (not included)
Product Type Non Fireproof, Temperature Sensor, No Key Type, Mortise Door Lock
Dimension Outter Body : 74.2(W) x 202(H) x 171(D) mm
Inner Body : 76(W) x 203(H) X 26(D) mm
Material Outter Body : Al, ABS
Inner Body : Al, Zn, ABS
